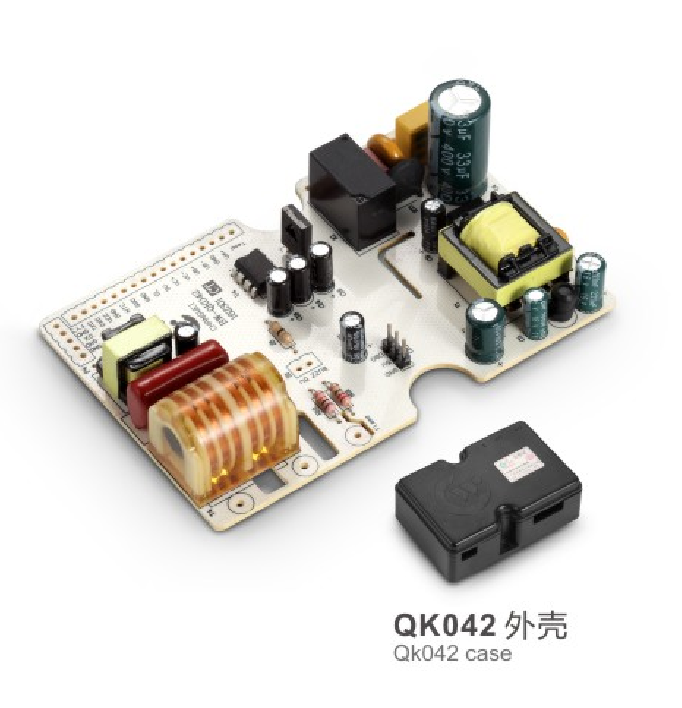

注：點擊顯示大圖
采用開關電源設計。集電源、點火控制一體 Design with on/off power supply w, which is combinespower supply, sparking and control together | 雙路交流離子火焰檢測輸入 Two -channel AC ion flame detection input. |
驅動兩路對地點火或單路雙線對點高壓輸出 Activate two-channel sparking to ground or single-channelfor high voltage output | 多路控制信號輸入檢測(如風壓開關信號、水控開關信號、水流傳感器信號、溫度傳感器信號、溫控器開關信號、冬夏切換開關信號等選擇) Multi-way control signal input detection including air switch signal, water control switch signal and water flow sensor signal/ temperature sensor signal and thermostat switch sign and change-over switich signal between winter and summer modal |
四線通信顯示器或獨立顯示器接口 Four-wire communication display or independent display connector | |
故障報警功能可實現聲光報警(以顯示器、指示燈、蜂鳴器實現報警提示) Failure warning function can be realized via sound-light alarm(Failure warning consists of display, indicator light, and buzzer) | 適用于液化氣、天然氣、人工氣 Several models of gas are applicable, such as MG，LPG, NG |
額定工作電壓：AC 220V Normal working voltage : AC 220V | 驅動一個AC220V水泵輸出 Active output of a AC220V water bump | 電磁閥：DC24V solenoid valve：DC24V | 單速風機：AC 220V≤300W Single speed fan：AC 220V≤300W |
工作電壓范圍: AC 176V-264V Working voltage range : AC 176V~264V | 驅動三組DC24V電磁閥輸出 Active output of three groups DC24V solenoid valve | 傳感器：（可根據客戶需求調整） Sensor is optional according to customer requirement | |
驅動一個AC220V單速風機輸出 Active output of a AC220V single speed fan | 輸出高壓( 30P ) : ≥12kV ,放電脈沖寬度≥12us，放電頻率8-18Hz，放電距離≥6mm Output voltage (30P) : ≥12kV, Sparking pulse width≥ 12us，sparking rate 8-18Hz，Sparking gap ≥ 6mm |
